DIY6502a (proto) PCB

In January, 2000, we made a few PCBs (printed circuit boards) for DIY6502.
I put together a preliminary 'board support package' (BSP0010.ZIP, 15K) for
the beta-testers, but there were very few boards, and we wanted to make all
the serious mistakes with the small lot.  We found only a few minor problems.

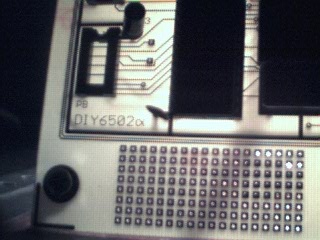

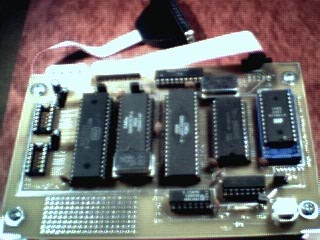

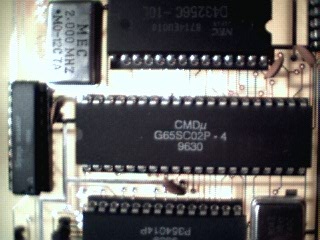

Here are some more photos of my working board:
