This setup is ready to work with;

• The 0.5mm QFP Adapter Pod is from Emulation Technology. This is a 0.5mm lead pitch SMT Prototyping Board, Part #ET-8100-SMT7. This particular SMT Adapter accepts either a QFP-208 or -240 on one side, and QFP-100, -128, or -144 on the other side.

  This Adapter Pod has already been used for a wire-wrapped Z183 prototype, and was especially useful, since it allowed most of the logic to sit directly underneath.

• Machine-pin interconnect strips are soldered into the underside of the SMT adapter. These are Samtec BBD series; the particular part number is BBD-113-T-C.
• A ''production'' QFP-100 socket with metal lid (Yamaichi IC-198 Series) is soldered to the QFP adapter board -- it can be reused if the metal lid is removed properly (delicately). Here is a link to Yamaichi Electronics USA, and a link to the PDF data sheet for these sockets, s_ic198.pdf (750KB)

  This Yamaichi production socket is the "cheapest" QFP-100 socket I found (actual price: about $10, but you must buy minimum ten of them from a Yamaichi distributor.) I still have about 10 left because actually I bought 12!

• The ISA prototyping card is a 2-sided PCB from Twin Industries shaped exactly for a perfect fit in any 16-bit ISA slot: ISA Prototyping Board #7098-52.

  I purchased my ISA prototyping card from Frey's Electronics in West Los Angeles, in 2001.

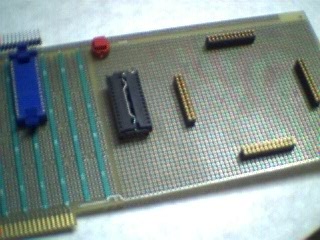

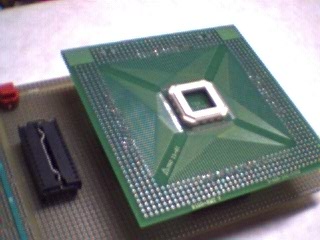

Board without pod inserted	Board with pod inserted

Close-up of Yamaichi (QFP-100) production socket without metal lid	Socket with lid on top (not secured, since nothing's inside it yet).

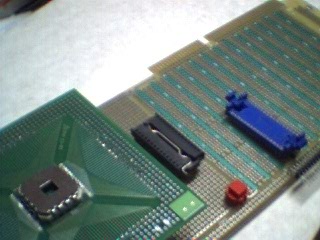

Stackable machine pin spacers elevate the adapter from the prototype.	The adapter board snaps tightly into place.	(Zooming out, perspective view)

Wire-wrap labels were printed and glued to the underside.		EAGLE printed to scale, so the numbers line up on 0.1" Centers.

This is the whole ISA prototyping card, ready to build and wirewrap.

Coming soon:
